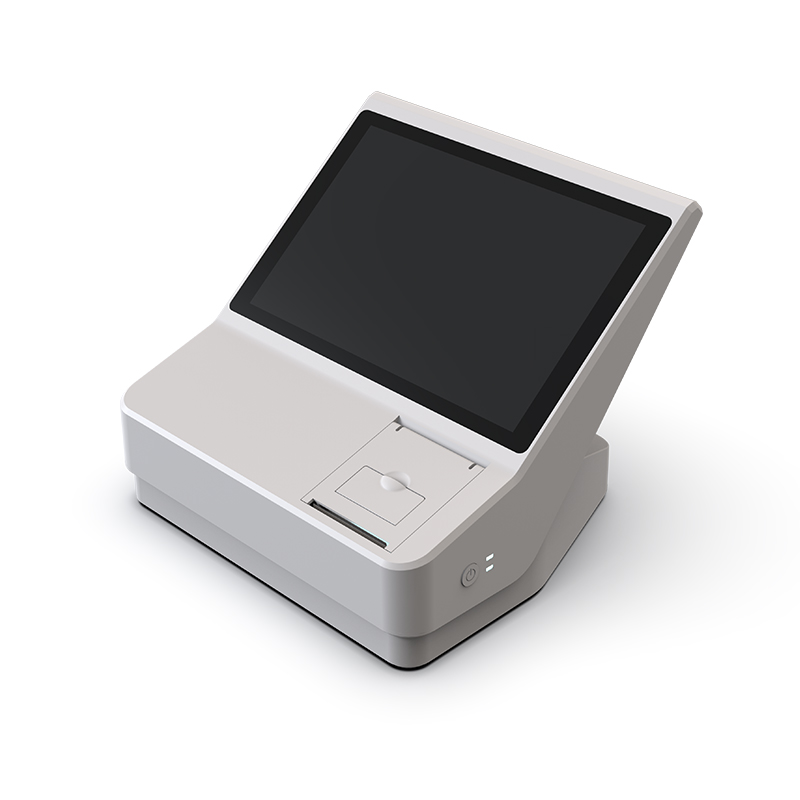

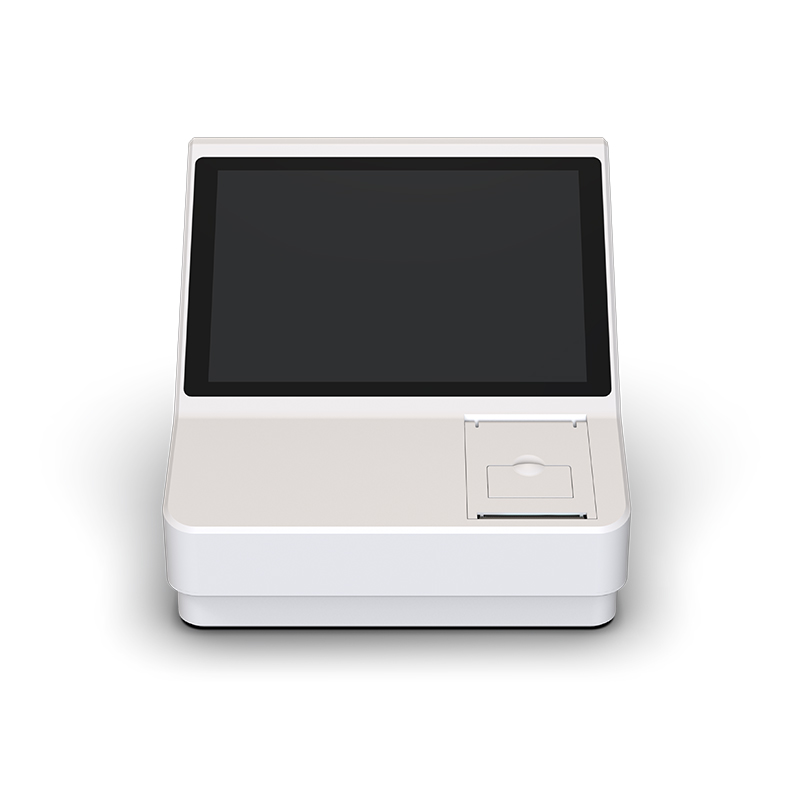

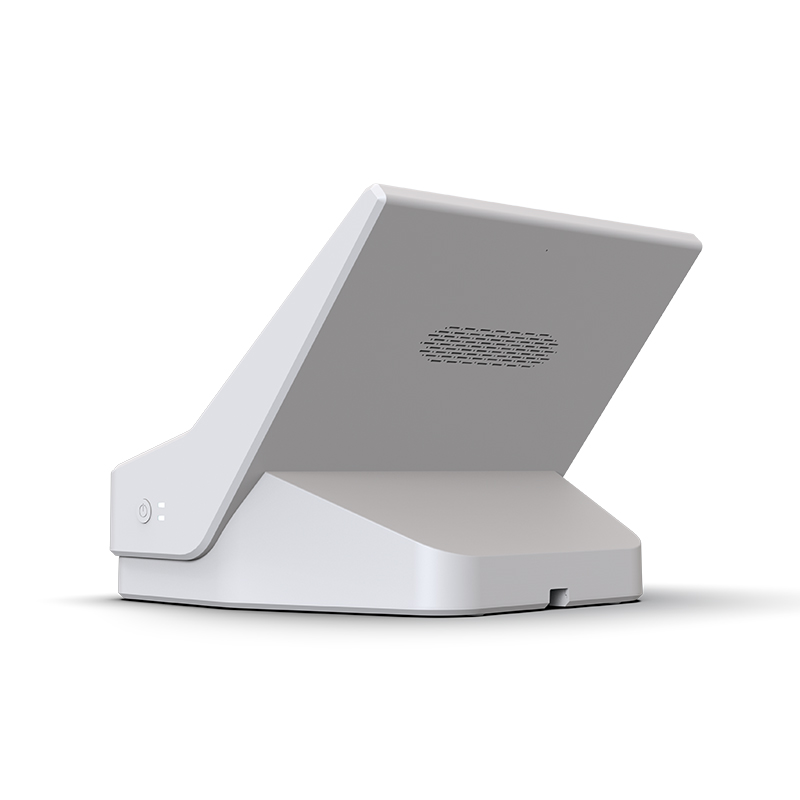

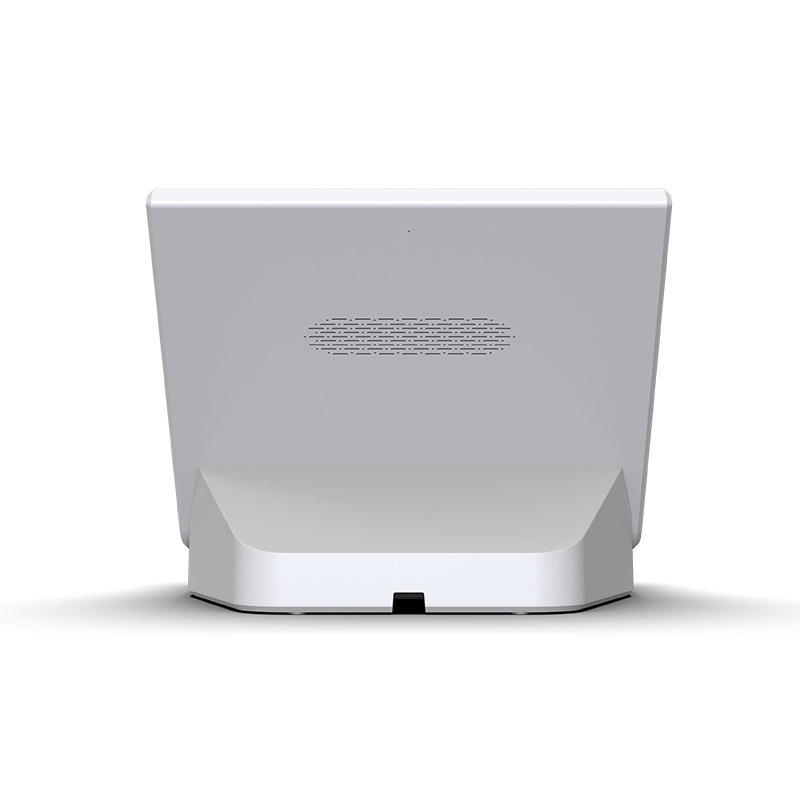

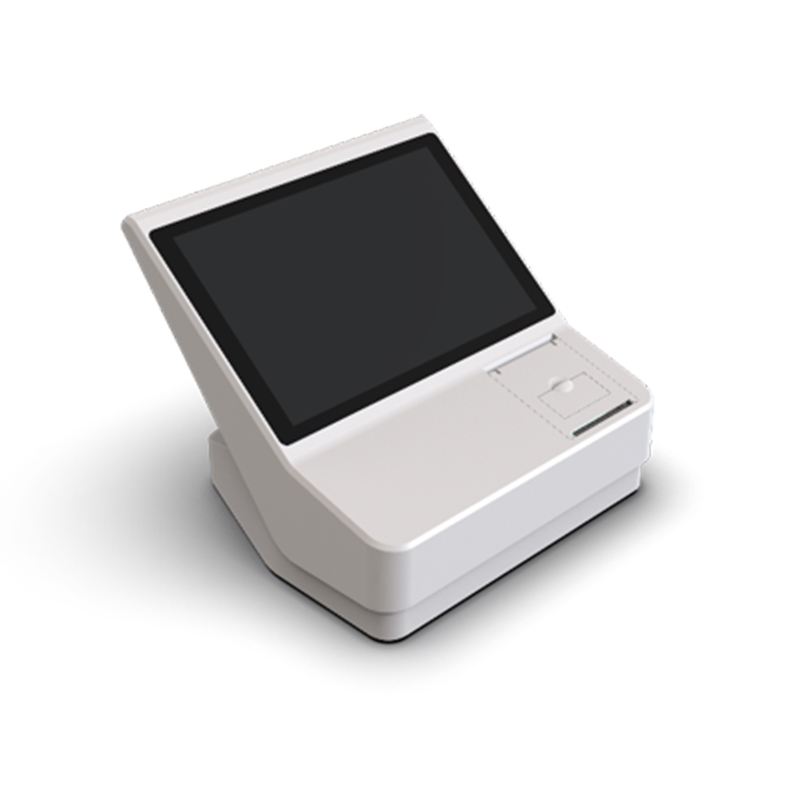

10.1"1-side screen series Smart cash-register POS-HD13
Introduction
•Multi-touch projected capacitive screen(PCAP);•Abundant I/O Ports;
•Screen ratio: 4:3
•Simple design, exquisite appearance
•Both the Main and Dual Screens Can be Rotated 62°
- Overview
- Specification
10.1"1-side screen series Smart cash-register POS-HD13
•Multi-touch projected capacitive screen(PCAP);
•Abundant I/O Ports;
•Screen ratio: 4:3
•Simple design, exquisite appearance
•Both the Main and Dual Screens Can be Rotated 62°
•Multi-touch projected capacitive screen(PCAP);
•Abundant I/O Ports;
•Screen ratio: 4:3
•Simple design, exquisite appearance
•Both the Main and Dual Screens Can be Rotated 62°
| HD13 | Smart cash-register POS | ||
| Panel | Detail | Remarks | |
| CPU | RK3566 4-core 64bits cotex- A55, 1.8GHz | ||
| LCD screen | 10.1" 800*1280 | ||
| Touch panel | 10.1"G+G multi-points capatitive touch panel | ||
| Storage | RAM | 2G | option: 4G |
| ROM | 16G | option: 32G、64G | |
| Speaker | 2W*1 | ||
| Printer | 58mm thermal printer | ||
| Adaptor | 12V/3A | ||
| Internet | WiFi |
2.4G
single frequency WIFI |
|
| BT | BT4.2 | ||
| Ethernet | 100M | ||
| Keys | turn on/ off key *1 | ||
| Connectivity | RJ45*1 | ||
| DC-IN*1 | |||
| RJ11*1 | |||
| Earphone*1 | |||
| USB2.0*3 | |||
| Housing material | Plastic injection molding+sun patterning | ||
| Cabinet color | White | ||
| Working temperature | Temperature:0~45℃ | ||
| Temperature:5%~90%RH（no congeal） | |||
| Storage temperature | Temperature : -20~60℃ | ||
| Temperature:10%~90%RH（no congeal） | |||
| OS | Android11 multi languages | default : Chinese | |
| Default installed softwares | refer to customers' request | ||
| Certificates | CCC | ||
